MAP Series

Light-Industrial | Compact & Universal | Hardwired SPD

Meter Treater's MAP Series is a "universal" application Surge Protection Device for service panels, subpanels, well pumps and pool pumps, machinery and more.

This suppressor meets the current industry standards and stops surges right at the electric meter before they can enter a facility. The MAP Series is a Type 1 or Type 2 Surge Protection Device (SPD) that is listed to ANSI/UL 1449.

The compact design, performance and universal application features of the MAP, makes it the ideal choice for Utility, Residential, Commercial and Light Industrial applications.

MAP Series, small compact multiple installation options. All units contain TPMOV technology which can distinguish between surges and overcurrent events.

Power

3D Preview

Load Current	Max Surge Current (8/20) Iₘₐₓ	Short-Circuit Current Rating (SCCR)	Repetative Impulse Rating (Iₙ)	On/Off Status⬥	Housing Rating	Product Weight	Product Dimensions	Most Current Industry Standards	Surge Technology	Connector Form/ Type	Connector Method	Interface	Operating Temperature	Operating Frequency	Fusing	Listings & Certifications	Enclosure	Max. Operating Voltage	Max. Clamp Voltage	Energy Rating/ Wire	Response Time	Warranty	Series Resistance	Peak Pulse Power	Line - Load Sensitive	Breakover Voltage: (Line - Ground)	Attenuation Margin	NEXT	Data Transfer Rate	Power Sum NEXT	Return Loss	ACR	Power Sum ACR	ARC -F	PSACRF	Mounting	Relative Humidity	Terminals	Max. Circuits Protected	Modes of Protection	Continuous Current	Follow Current	Wire Range	Feedback	Remote Alarm Contacts	Remote Alarm contact capability (Nominal Volts/ Nominal Amps)	Remote Alarm Wire Size	Included Accessories
up to 800 Amps Continuous	50 kA per Phase	100 kA RMS Symmetrical	20 kA* (nominal discharge current)	Fiber Optics, LED	NEMA 1 Standard with NEMA 4X Optional✝			ANSI/UL 1449	MOV		Hardwired			47-63 Hz (50/60 Hz Typ.)	Surge/ Thermal	Listed to ANSI/UL 1449	Polycarbonate				< 1 Nanosecond	15 Year Limited Product Warranty															95% noncondensing

Download: Specification Sheet (.pdf)

Specifications

Specification	Value
Load Current	up to 800 Amps Continuous
Max Surge Current (8/20) Iₘₐₓ	50 kA per Phase
Short-Circuit Current Rating (SCCR)	100 kA RMS Symmetrical
Repetative Impulse Rating (Iₙ)	20 kA* (nominal discharge current)
On/Off Status⬥	Fiber Optics, LED
Housing Rating	NEMA 1 Standard with NEMA 4X Optional✝
Most Current Industry Standards	ANSI/UL 1449
Surge Technology	MOV
Connector Method	Hardwired
Operating Frequency	47-63 Hz (50/60 Hz Typ.)
Fusing	Surge/ Thermal
Listings & Certifications	Listed to ANSI/UL 1449
Enclosure	Polycarbonate
Response Time	< 1 Nanosecond
Warranty	15 Year Limited Product Warranty
Relative Humidity	95% noncondensing

Diagrams

Not To Scale

Electrical Ratings

Click on any MAP Series model from the table to request a quote

Model Number	Service Voltage	TYPE	MCOV	L-N (VPR)	L-G (VPR)	N-G (VPR)	L-L (VPR)
MAP050/120-10-0-2	120 single	AC	150V	600V	1200V	600V	N/A
MAP050/120-2P-0-2	120/240V	AC	150V	N/A	600V	N/A	1200V
MAP050/120-3H-0-2	120/240 Highleg	AC	150V	600/1000V	1200/1800V	600V	1200/1800V
MAP050/120-3W-0-2	120/208 Wye	AC	150V	600V	1200V	600V	1200V
MAP050/120-SO-0-1	120/240V	AC	150V	600V	N/A	N/A	1200V
MAP050/120-SP-0-2	120/240 split	AC	150V	600V	1200V	600V	1200V
MAP050/240-2P-0-2	240 Volt Two Phase	AC	320V	N/A	1000V	N/A	2000V
MAP050/240-3D-0-2	240 Delta	AC	320V	N/A	1000V	N/A	2000V
MAP050/277-3W-0-2	277/480 Wye	AC	320V	1000V	2000V	1000V	2000V
MAP050/480-3D-0-2	480 Delta	AC	550V	N/A	1800V	N/A	4000V
MAP100/120-10-0-1	120 Volt Single Phase	AC	150V	600V	600V	1200V	N/A

✝︎ Other options available. Contact factory.

* Devices that are rated 480V delta have a 10kA In

⬥ If light is out, unit must be serviced

Compatibility Table

EDR Model Number	PVA50-1P-xxxv-S	PVA50-2P-xxxv-S	PVA50-3P-xxxy-S	PVA50-5P-xxxy-S	DRA50-1Pxxx-S	DRA50-2Pxxx-LGN	DRA50-2Pxxx-S	DRA50-3Pxxx-S	DRA50-3PSxxx-S	DRA50-4Pxxx-S	CLT-xxx	SLT CAT X/X-POE	SLT/XM-02-	SLT/XM-04-	SLT/XM-06-	SLT/XM-10-	TST010/XXX	TST020/(120-250v)	TST020/(24-48v)	TST040/XXX

Download: Full Instructions (.pdf)

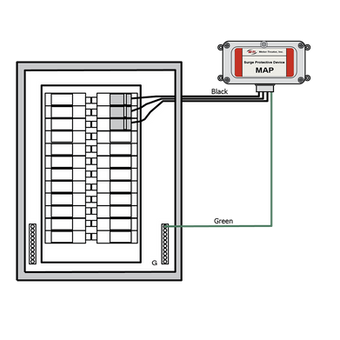

Wiring Details

MAP Series wiring diagram a WYE Meter Socket

Not To Scale

GENERAL

This document provides detailed information on how to install and operate the MAP Series of Surge Protective Devices. (SPD) READ COMPLETE DOCUMENT BEFORE INSTALLING.
The MAP Series of SPDs are installed and connected in parallel ("shunt") across the AC supply to be protected. Connecting wires do not carry the supply current, only the short duration currents associated with the suppression of a transient event.
Identified or indicated Leads/Wires must be connected exactly with respect to the AC Power feeding the SPD. Failure to do so may result in damage to the device or pose a danger to personnel.
Incorrect installation may significantly impair the performance of the SPD. It is particularly important that all installation procedures and guidelines be followed exactly.
INSTALLATION OF THIS DEVICE SHOULD ONLY BE PERFORMED BY A QUALIFIED INSTALLER
CHECK TO ENSURE THAT ALL CONNECTIONS ARE CORRECT AND SECURE BEFORE ENERGIZING.
KEEP THIS MANUAL IN A SAFE, DRY PLACE FOR FUTURE REFERENCE.

MOUNTING INFORMATION

NOTE: BEFORE STARTING THE INSTALLATION, MEASURE THE LINE VOLTAGE WITH AN AC VOLTMETER TO ENSURE THE CORRECT DEVICE HAS BEEN SELECTED FOR THE APPLICATION. L-N/G VOLTAGE SHOULD NOT EXCEED THE MAXIMUM CONTINUOUS OPERATING VOLTAGE (MCOV) LISTED ON THE SPD LABEL.

When mounting the MAP SERIES SPD, if applicable, use the four mounting holes.
Place the SPD as close as possible to the connection point in the NEMA enclosure. Keeping the lead length short will increase the performance of the unit.

NOTE: IF YOU CHOOSE TO MOUNT THE MAP UNIT, OBSERVE ALL SAEFTY PROCEDURES APPLICABLE FOR A LIVE METER SOCKET OR ELECTRICAL PANEL. NOTE: SPLICING WIRES TO GAIN EXTRA LEAD LENGTH IS NOT ADVISABLE AS THE EXTRA LEAD LENGTH WILL DEGRADE THE PERFORMANCE OF THE DEVICE. NOTE: MOUNTING TABS ON THE MAP SPD MAY BE REMOVED IF MOUNTING IS NOT NECESSARY
