675-3PAL
Three Phase Meter-Based | 2.4" Standoff
The 675-3PAL Meter Based SPD built above the current industry standards, stops surges right at the electric meter, before they can enter your building.
Units are equipped with bright red status LEDs that are fully visible in the brightest sunlight allowing fast and accurate readings in the field.
The product complies with all current safety requirements. The 675-3PAL is a Type 1 Surge Protection Device (SPD) listed to ANSI/UL 1449 and ANSI/UL 414.
The integration of design, performance and safety features in the METER-TREATER® makes it an ideal choice for Utility Power Quality Programs. A 15 Year Product Warranty and concurrent Extended Warranty for downstream white appliances is included✝︎.
Meter-Based
Power
3D Preview
Load Current | Max Surge Current (8/20) Iₘₐₓ | Short-Circuit Current Rating (SCCR) | Repetative Impulse Rating (Iₙ) | On/Off Status⬥ | Housing Rating | Product Weight | Product Dimensions | Most Current Industry Standards | Surge Technology | Connector Form/ Type | Connector Method | Interface | Operating Temperature | Operating Frequency | Fusing | Listings & Certifications | Enclosure | Max. Operating Voltage | Max. Clamp Voltage | Energy Rating/ Wire | Response Time | Warranty | Series Resistance | Peak Pulse Power | Line - Load Sensitive | Breakover Voltage: (Line - Ground) | Attenuation Margin | NEXT | Data Transfer Rate | Power Sum NEXT | Return Loss | ACR | Power Sum ACR | ARC -F | PSACRF | Mounting | Relative Humidity | Terminals | Max. Circuits Protected | Modes of Protection | Continuous Current | Follow Current | Wire Range | Feedback | Remote Alarm Contacts | Remote Alarm contact capability (Nominal Volts/ Nominal Amps) | Remote Alarm Wire Size | Included Accessories |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
250 Amps (200 Amps continuous) | 150 kA (50 kA per phase) | 10 kA RMS Symmetrical | 20 kA | LED* | NEMA 3R | 2.2 lbs | 4.18" x 6.81" (2.4" installed depth) | ANSI/UL 1449 | MOV | ANSI Meter-form | Plug-in w/ Ground Wire | -40 ℉ to +140 ℉
(-40 ℃ to +60 ℃) 10% ± | 47-63 Hz (50/60 Hz Typ.) | Surge/ Thermal | Listed to ANSI/UL 1449, ANSI/UL 414 | Polycarbonate with UV inhibitors | < 1 Nanosecond | 15 Year Limited Product Warranty | 95% noncondensing |
Specifications
Specification | Value |
|---|---|
Load Current | 250 Amps (200 Amps continuous) |
Max Surge Current (8/20) Iₘₐₓ | 150 kA (50 kA per phase) |
Short-Circuit Current Rating (SCCR) | 10 kA RMS Symmetrical |
Repetative Impulse Rating (Iₙ) | 20 kA |
On/Off Status⬥ | LED* |
Housing Rating | NEMA 3R |
Product Weight | 2.2 lbs |
Product Dimensions | 4.18" x 6.81" (2.4" installed depth) |
Most Current Industry Standards | ANSI/UL 1449 |
Surge Technology | MOV |
Connector Form/ Type | ANSI Meter-form |
Connector Method | Plug-in w/ Ground Wire |
Operating Temperature | -40 ℉ to +140 ℉
(-40 ℃ to +60 ℃) 10% ± |
Operating Frequency | 47-63 Hz (50/60 Hz Typ.) |
Fusing | Surge/ Thermal |
Listings & Certifications | Listed to ANSI/UL 1449, ANSI/UL 414 |
Enclosure | Polycarbonate with UV inhibitors |
Response Time | < 1 Nanosecond |
Warranty | 15 Year Limited Product Warranty |
Relative Humidity | 95% noncondensing |

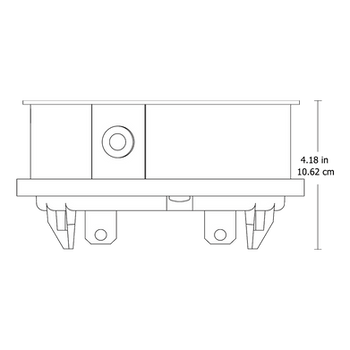

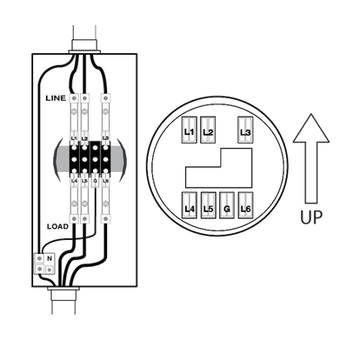

Diagrams
Not To Scale
Electrical Ratings
Click on any 675-3PAL model from the table to request a quote
Model Number | Service Voltage | TYPE | MCOV | # Jaw Blades | MAX Surge Rating | Continuous Rating | VPR |
|---|---|---|---|---|---|---|---|
675-3PAL | 120/240 | AC | 270V | 7 | 250A | 260A | 1000V |
✝︎ Concurrent extended warranty is only applicable for residential customers participating in a utility residential surge protection program and for those utilities requesting the extended warranty.
* Three red LED's - one monitors each phase
⬥ If one or more lights are out, unit must be serviced
