SLT-HEB Series

High Energy Surge Protection Device for Sensors

The SLT/HEB Series of protectors is available as either a 4, 5, 8, or 10 Wire SPD (surge protective device) unit that will interface directly, in series, with 4 or 5 pin M12/Euro/DC Micro Connectors. Perfect for 24v Proximity Sensors in applications like Haul Roaps and People Movers. Models are unidirectional due to connector configuration; where the male connector equals Line Side (unprotected) and the female equals the Load Side (protected). Circuit performance is bidirectional. Models have both male and female connectors for series connection.

Unit is housed in a potted aluminum case with either Zytel plastic or aluminum end caps.

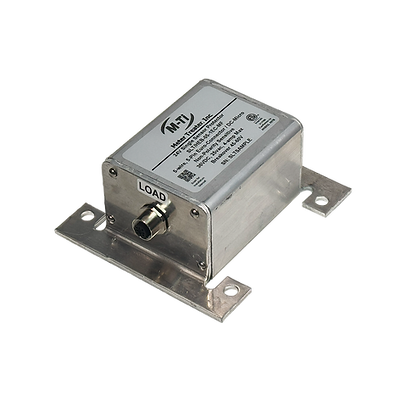

The SLT-HEB provides protection against Transient Voltages that exceed nominal operating voltages of incoming data. Each line is protected against surge current impulses up to 8kA.
Utility
Commercial
Industrial
Power

Power

Data/Comm

Data/Comm

3D Preview

Load Current
Max Surge Current (8/20) Iₘₐₓ
Short-Circuit Current Rating (SCCR)
Repetative Impulse Rating (Iₙ)
On/Off Status⬥
Housing Rating
Product Weight
Product Dimensions
Most Current Industry Standards
Surge Technology
Connector Form/ Type
Connector Method
Interface
Operating Temperature
Operating Frequency
Fusing
Listings & Certifications
Enclosure
Max. Operating Voltage
Max. Clamp Voltage
Energy Rating/ Wire
Response Time
Warranty
Series Resistance
Peak Pulse Power
Line - Load Sensitive
Breakover Voltage: (Line - Ground)
Attenuation Margin
NEXT
Data Transfer Rate
Power Sum NEXT
Return Loss
ACR
Power Sum ACR
ARC -F
PSACRF
Mounting
Relative Humidity
Terminals
Max. Circuits Protected
Modes of Protection
Continuous Current
Follow Current
Wire Range
Feedback
Remote Alarm Contacts
Remote Alarm contact capability (Nominal Volts/ Nominal Amps)
Remote Alarm Wire Size
Included Accessories
5 Amp
8 kA or 10 kA
20 Ounces
4.55"L x 4.75"W x 2.26" H (includes mounting bracket)
ANSI/UL 497B, IP67
High Energy SAD Array
4 or 5 Pin Rigid M12 Connectors Male & Female (DC Micro - Euro)
Plug-in
-40 ℉ to +185 ℉ (-40 ℃ to + 85 ℃)
15 MHz
Listed to ANSI/UL 94 V-0
Aluminum Extrusion with Zytel (or) Aluminum End Caps
36 Volts DC
54..4 Volts @ 200 Amps/450 Volts
402.5 Joules
< 1 Nanosecond
10 Year Limited Product Warranty
54 Volts
Fixed Built-in Bracket
95% noncondensing
10
L-L
DIN Clip Kit

Specifications

Specification
Value
Load Current
5 Amp
Max Surge Current (8/20) Iₘₐₓ
8 kA or 10 kA
Product Weight
20 Ounces
Product Dimensions
4.55"L x 4.75"W x 2.26" H (includes mounting bracket)
Most Current Industry Standards
ANSI/UL 497B, IP67
Surge Technology
High Energy SAD Array
Connector Form/ Type
4 or 5 Pin Rigid M12 Connectors Male & Female (DC Micro - Euro)
Connector Method
Plug-in
Operating Temperature
-40 ℉ to +185 ℉ (-40 ℃ to + 85 ℃)
Operating Frequency
15 MHz
Listings & Certifications
Listed to ANSI/UL 94 V-0
Enclosure
Aluminum Extrusion with Zytel (or) Aluminum End Caps
Max. Operating Voltage
36 Volts DC
Max. Clamp Voltage
54..4 Volts @ 200 Amps/450 Volts
Energy Rating/ Wire
402.5 Joules
Response Time
< 1 Nanosecond
Warranty
10 Year Limited Product Warranty
Breakover Voltage: (Line - Ground)
54 Volts
Mounting
Fixed Built-in Bracket
Relative Humidity
95% noncondensing
Max. Circuits Protected
10
Modes of Protection
L-L
Included Accessories
DIN Clip Kit
